Block Bindings

Documentation Block Bindings

Last updated May 13, 2026

Overview

Block bindings allow you to connect WordPress block attributes to ACF field values. Instead of hardcoding content in a Heading, Paragraph, Image, or Button block, you can bind the block’s content to an ACF field. When the field value changes, the bound block content updates automatically.

ACF 6.8.1 introduces full support for WordPress’s Block Bindings API, including integration with the editor’s Attributes panel UI and live preview with in-place editing.

Requirements

• ACF PRO 6.8.1 or later
• WordPress 6.7 or later
• The ACF datastore enabled

Enabling Block Bindings

Block bindings require two things to be enabled:

1. Enable the Datastore

Add this filter to your theme or plugin:

add_filter( 'acf/settings/enable_datastore', '__return_true' );

See acf/settings/enable_datastore for more options.

2. Enable Fields for Bindings

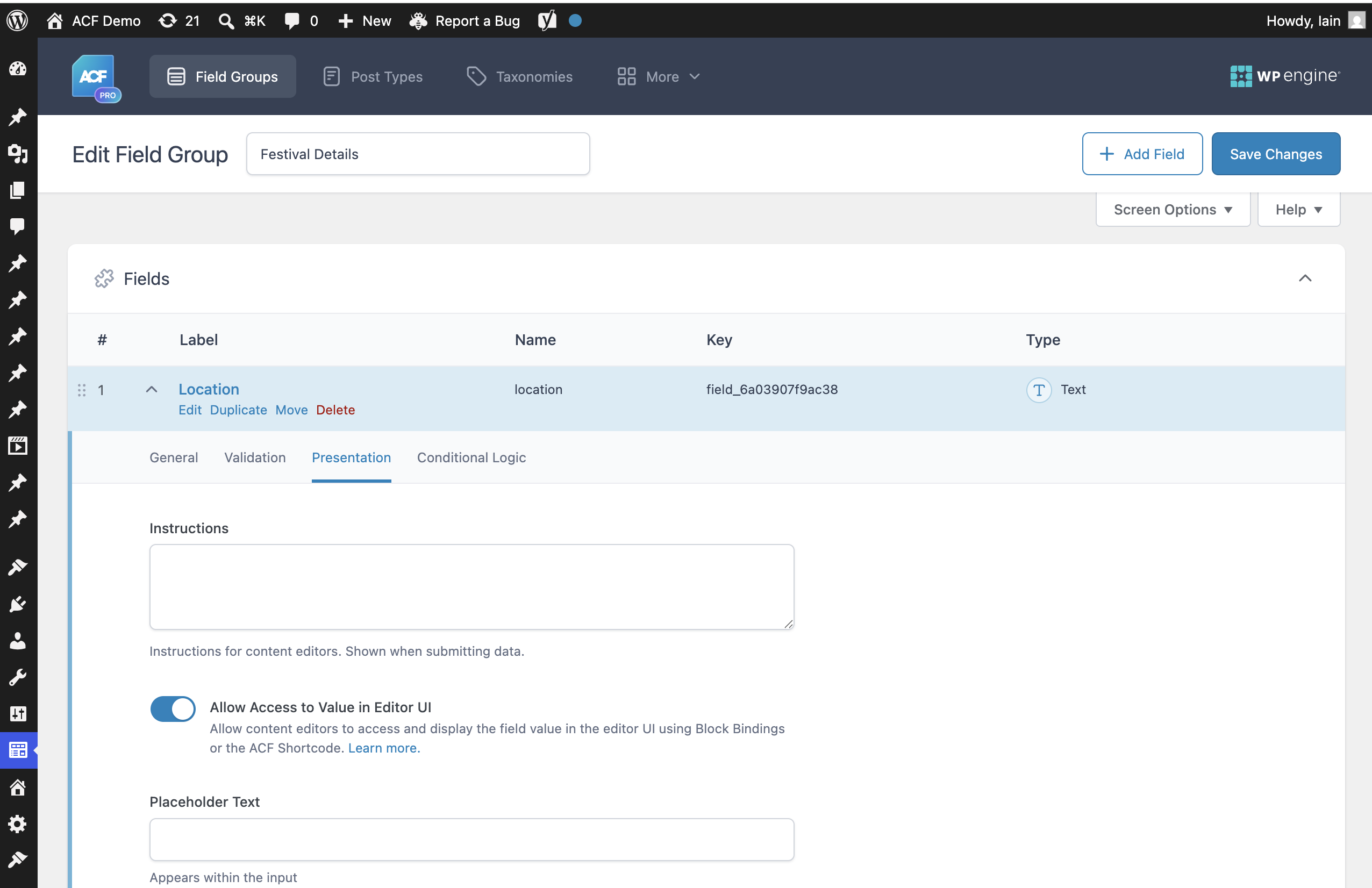

For each field you want to use with block bindings, enable “Allow Access to Value in Editor UI” in the field settings:

1. Edit your field group
2. Select the field you want to expose
3. Go to the Presentation tab
4. Enable “Allow Access to Value in Editor UI”
5. Save the field group

Only fields with this setting enabled will appear in the Block Bindings UI.

Using Block Bindings in the Editor

Once enabled, you can bind blocks to ACF fields directly in the editor using WordPress’s Attributes panel.

Supported Blocks

The following core blocks support attribute bindings:

• Heading – content attribute
• Paragraph – content attribute
• Image – url, alt, and title attributes
• Button – text and url attributes

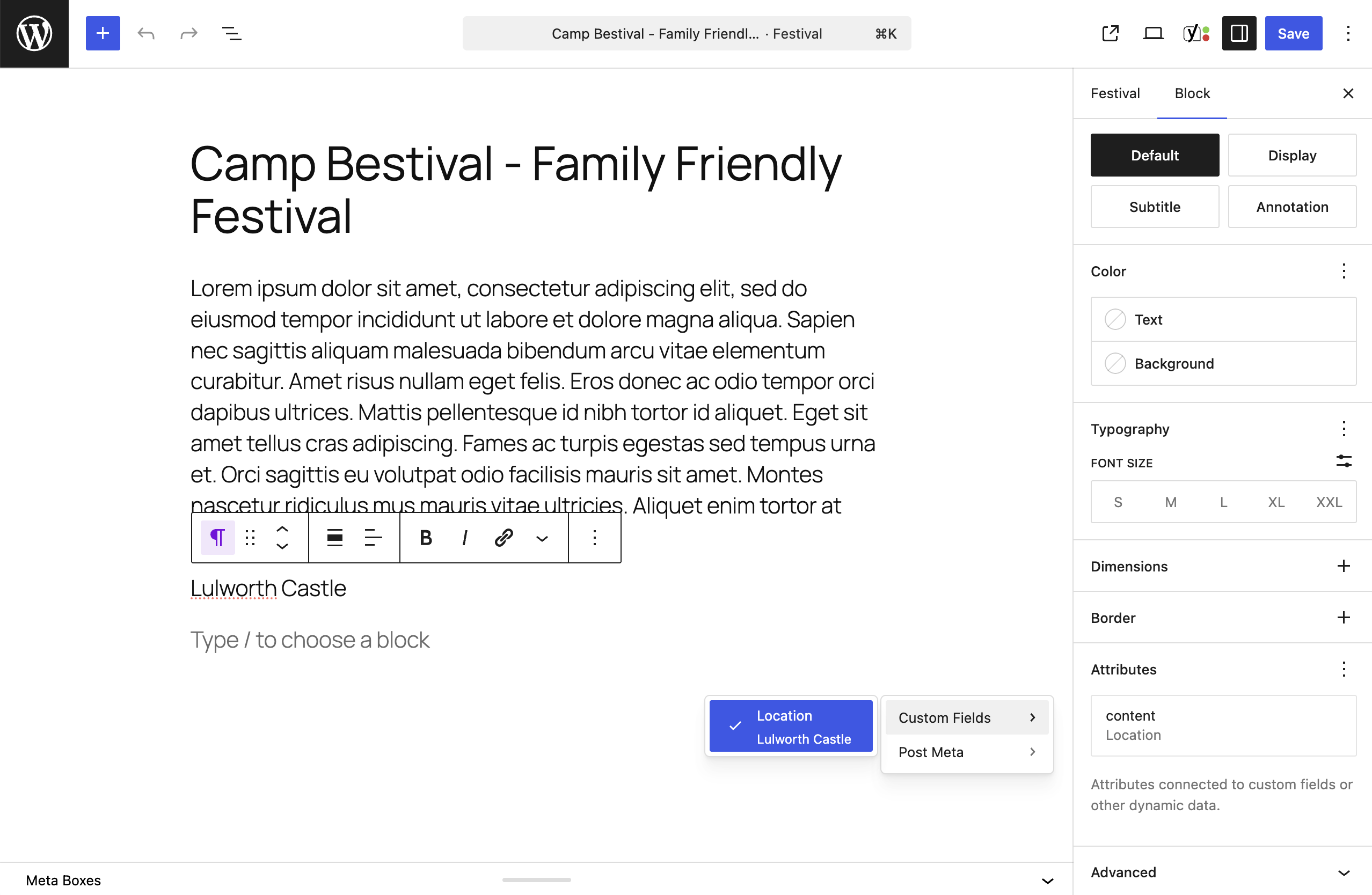

Binding a Block

1. Add or select a supported block (e.g., Heading)
2. Open the block settings sidebar
3. Look for the “Attributes” panel
4. Click the attribute you want to bind (e.g., “Content”)
5. Select “ACF Field” as the source
6. Choose from your available ACF fields

The block will now display the ACF field value, and updates to the field will reflect in the block.

Live Preview and Editing

When block bindings are enabled with the datastore, you get live preview and in-place editing:

• Real-time updates – Changes to ACF fields immediately update bound blocks in the editor
• In-place editing – Click on a bound block and edit its content directly
• Bidirectional sync – Edits made in the block sync back to the ACF field

This creates a seamless editing experience where bound blocks behave like native Gutenberg content while remaining powered by your ACF field values.

Supported Field Types

Block bindings work with field types that return simple values compatible with block attributes:

Field Type	Supported	Notes
Text	Yes
Textarea	Yes
Number	Yes	Converted to string
Email	Yes
URL	Yes
Password	Yes
Select	Yes	Single value only
Radio Button	Yes
True/False	Yes	Returns “true” or “false”
Date Picker	Yes
Time Picker	Yes
Color Picker	Yes
Image	Yes	Returns URL for image bindings
File	Yes	Returns URL

Unsupported Field Types

Complex field types that return arrays or objects are not supported:

• Repeater
• Flexible Content
• Gallery
• Group (as a whole, but sub-fields can be bound)
• Relationship (returns array of IDs)
• Post Object (when set to return multiple)
• Checkbox (returns array)

Value Formatting

Bound values are formatted for display in blocks:

Value Type	Display
Strings	Displayed as-is
Numbers	Converted to string
Booleans	“true” or “false”
Arrays of scalars	Joined with “, “
Objects/nested arrays	Empty string

Programmatic Bindings

You can also create bindings in code using the Block Bindings API.

In Block Markup

Add bindings to a block’s metadata:

<!-- wp:heading {"metadata":{"bindings":{"content":{"source":"acf/field","args":{"key":"page_title"}}}}} -->
<h2 class="wp-block-heading"></h2>
<!-- /wp:heading -->

In PHP Templates

<?php
$block_content = '<!-- wp:paragraph {"metadata":{"bindings":{"content":{"source":"acf/field","args":{"key":"intro_text"}}}}} --><p></p><!-- /wp:paragraph -->';
echo do_blocks( $block_content );
?>

Image Bindings

Bind an image block to an ACF Image field:

<!-- wp:image {"metadata":{"bindings":{"url":{"source":"acf/field","args":{"key":"featured_photo"}},"alt":{"source":"acf/field","args":{"key":"featured_photo_alt"}}}}} -->
<figure class="wp-block-image"><img src="" alt=""/></figure>
<!-- /wp:image -->

Button Bindings

Bind a button’s text and URL:

<!-- wp:button {"metadata":{"bindings":{"text":{"source":"acf/field","args":{"key":"cta_text"}},"url":{"source":"acf/field","args":{"key":"cta_url"}}}}} -->
<div class="wp-block-button"><a class="wp-block-button__link"></a></div>
<!-- /wp:button -->

Disabling Bindings for Specific Fields

To prevent a field from being used in bindings, you can:

In the Admin UI

Disable “Allow Access to Value in Editor UI” in the field’s Presentation tab.

In Code

Set allow_in_bindings to false when registering the field:

acf_add_local_field( array(
    'key'               => 'field_my_field',
    'name'              => 'my_field',
    'type'              => 'text',
    'allow_in_bindings' => false,
) );

Or in a JSON field group:

{
    "key": "field_my_field",
    "name": "my_field",
    "type": "text",
    "allow_in_bindings": false
}

Troubleshooting

Fields Not Appearing in Attributes Panel

1. Verify the datastore is enabled (acf/settings/enable_datastore filter returns true)
2. Check that “Allow Access to Value in Editor UI” is enabled for the field
3. Confirm you’re using WordPress 6.7 or later
4. Ensure the field type is supported (see table above)

Bound Content Not Updating

1. Check the browser console for JavaScript errors
2. Verify the field has a saved value
3. Try refreshing the editor

Bindings Work in Editor but Not on Frontend

Server-side rendering should work regardless of datastore settings. If bound content isn’t appearing on the frontend:

1. Check that the field has a value for the current post
2. Verify the field key in the binding matches your field
