Moving WP elements (such as the content editor) within ACF fields

Last updated Mar 31, 2015

Overview

This article will demonstrate a solution for moving core WordPress elements within ACF fields. This concept uses a message field as a blank placeholder into which the elements are moved via jQuery.

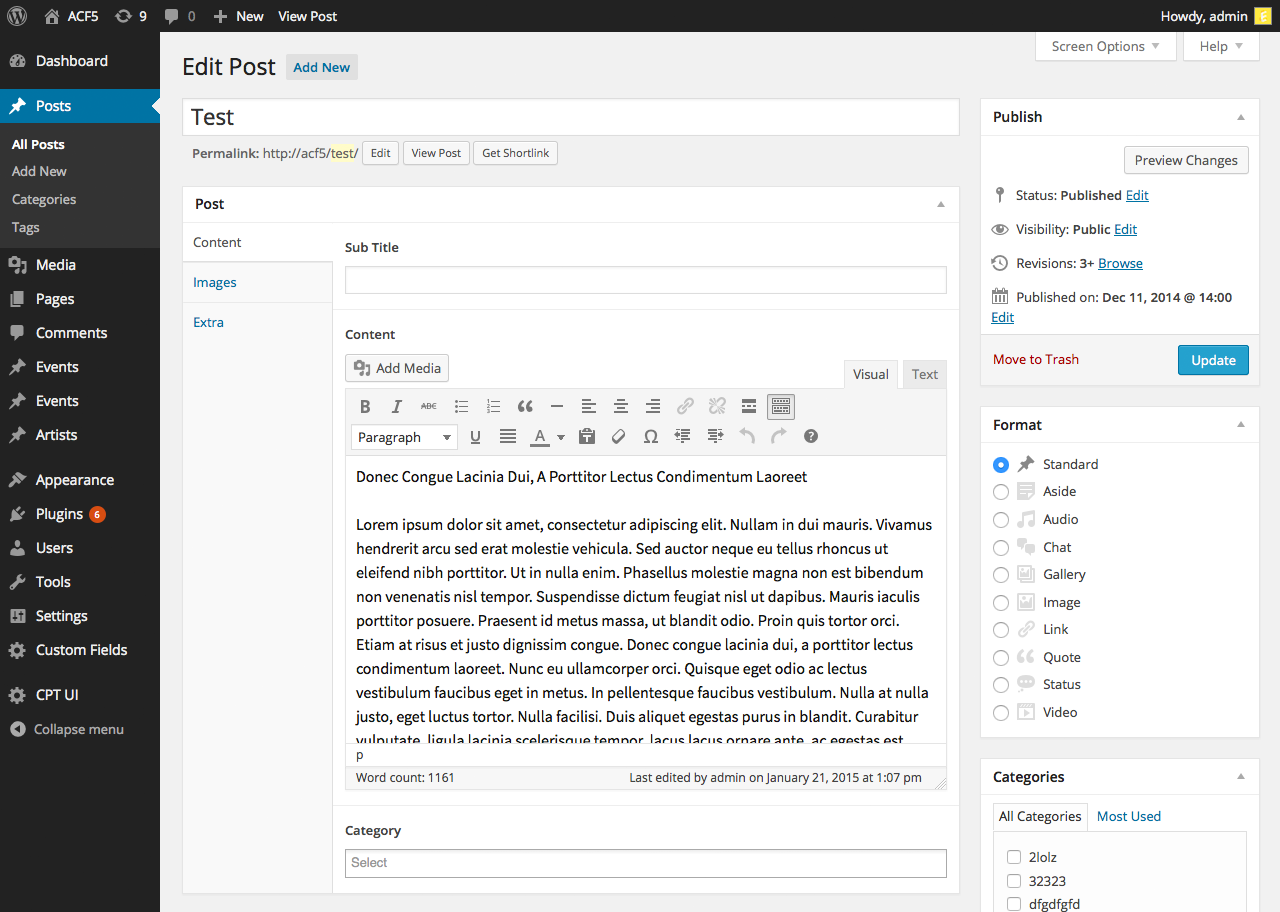

Here’s a look at what the interface can look like when moving the WP editor within a field group. On the left shows a normal edit page and on the right shows the WP editor moved within a field group and most importantly below a field called ‘Sub Title’.

Instructions

The placeholder

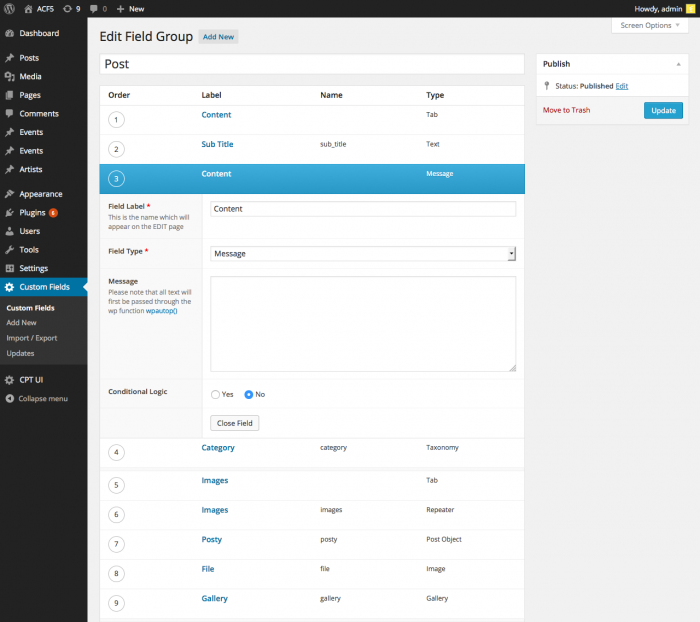

Assuming you have a field group already setup, go ahead and create a message field in the desired location and give it a label which will relate to the WP element(s) it will soon hold.

acf-moving-elements-field-group

The code

Custom CSS/JS can easily be added using the acf/input/admin_head action. The following will target the ACF placeholder field, and move the WP content editor (#postdivrich) within it. There is also some style to remove a grey background from the element making it sit more naturally within the ACF field.

functions.php

add_action('acf/input/admin_head', 'my_acf_admin_head');

function my_acf_admin_head() {

    ?>
    <script type="text/javascript">
    (function($) {

        $(document).ready(function(){

            $('.acf-field-54cf2c4fcfbfe .acf-input').append( $('#postdivrich') );

        });

    })(jQuery);
    </script>
    <style type="text/css">
        .acf-field #wp-content-editor-tools {
            background: transparent;
            padding-top: 0;
        }
    </style>
    <?php

}

Note

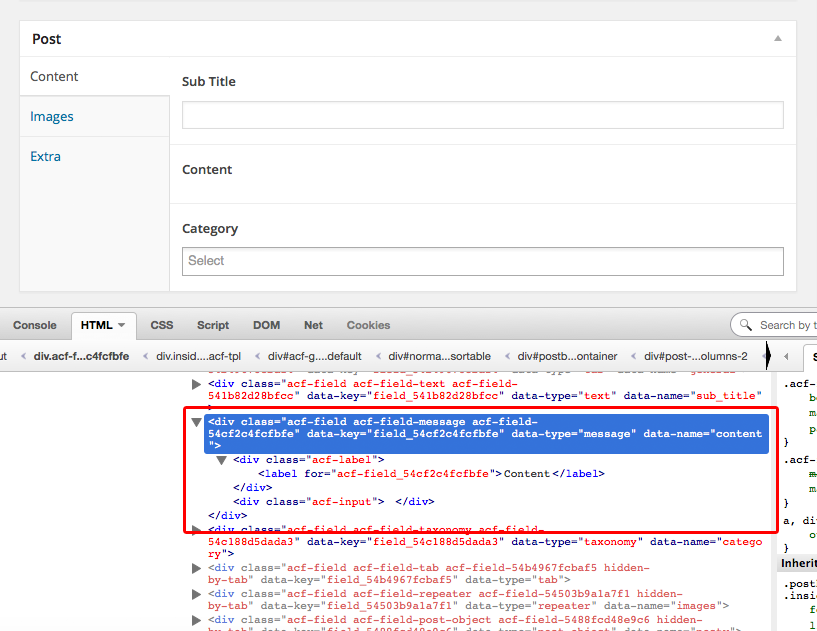

Please note that each field has a unique key and can be found by simply inspecting the field element on the page. Different versions of ACF (4 and 5) may reveal slightly different field classes, so please double check your jQuery selector is correct before using the code.

acf-moving-elements-selector

Conclusion

The concept here is quite simple, but can be used in complex ways to create a more seamless content editing experience.
