Relationship

Last updated Aug 9, 2023

Description

The Relationship field provides a dual-column component to select one or more posts, pages or custom post type items, providing search, post type and taxonomy filtering controls to help find results.

Screenshots

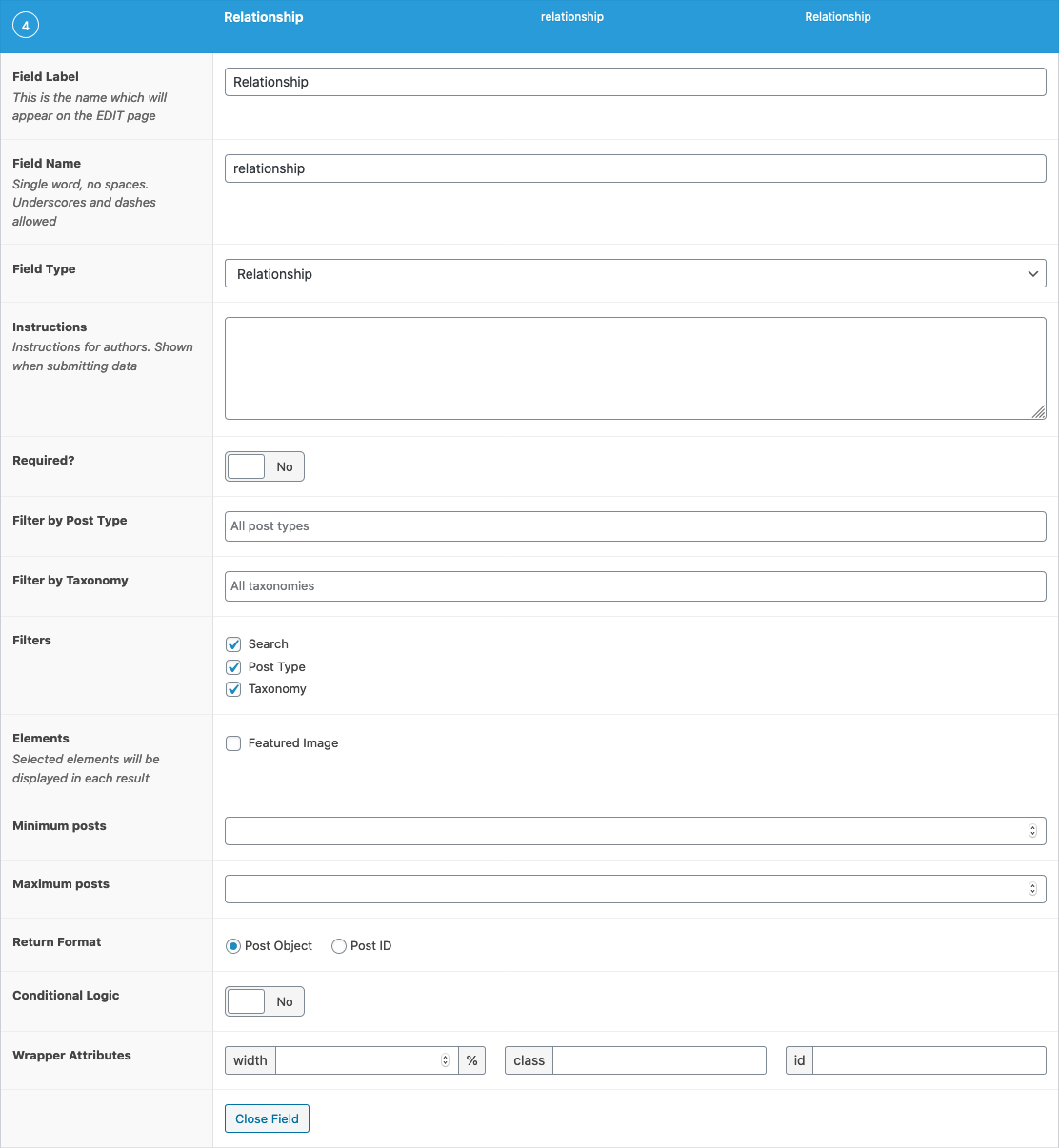

Creating a Relationship field in an ACF field group. The tab shown depicts General settings for the field: Field Type, Field Label, Field Name, Filter by Post Type, Filter by Post Status, Filter by Taxonomy, a set of buttons to select which of the above filters will be used in the component, and Return Format. The other tabs are Validation, Presentation, Conditional Logic, and Advanced.

Creating a Relationship field in an ACF field group.

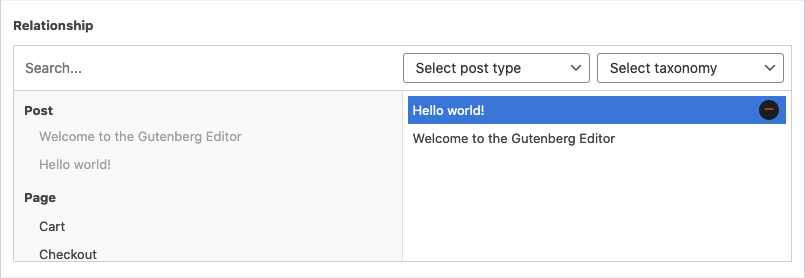

The Relationship field UI as it might appear to content editors. Existing posts, pages, etc., are shown in the left-hand column. Selecting them will move them to the right-hand column. A search box and dropdown menus that enable filtering make it easier to search for the object with which to establish a relationship.

The Relationship field UI as it might appear to content editors.

Settings

  • Filter by Post Type
    Filters the selectable results by post type. When left empty, all post types are shown. Results are grouped by post type, so selected post types may be positioned in a specific order.

  • Filter by Post Status
    Filters the selectable results by status, i.e, Published, Draft, etc. Shows posts of every status if left empty.

  • Filter by Taxonomy
    Filters the selectable results via one or more taxonomy terms.

  • Filters
    Specifies which filters are displayed in the component. Select from “Search”, “Post Type”, and/or “Taxonomy”.

  • Return Format Specifies the returned value format. Choose from Post Object (WP_Post) or Post ID (integer).

  • Required
    Found on the Validation tab, this requires an input be entered, preventing the field from accepting empty values. Defaults to off.

  • Minimum Posts
    Sets a limit on how many posts are required.

  • Maximum Posts
    Sets a limit on how many posts are allowed.

  • Instructions
    Shows instructions when submitting data.

  • Elements
    Specifies which elements are displayed in each result. Select from “Featured Image”.

  • Conditional Logic
    Enabling this setting allows you to customize the logic which determines if the current field should be visible. Groups of conditional logic rules can be created to allow for multiple and/or statements.

  • Bidirectional
    Found on the Advanced tab, enabling this setting allows you to update a value in the target fields for each value selected for this field, adding or removing the Post ID, Taxonomy ID, or User ID of the item being updated. Please see Bidirectional Relationships for more information on using this setting to create bidirectional relationships directly in ACF’s UI.

Template usage

The Relationship field will return an array of items where each item is either a WP_Post object or an integer value depending on the Return Format set.

Display list of posts (with setup_postdata)

This example demonstrates how to loop over a Post Object value and display a list of clickable links. Here, we use a special function named setup_postdata() to enable the use of WordPress template functions. The field in this example uses Post Object as the Return Format, and is a multiple value.

<?php
$featured_posts = get_field('featured_posts');
if( $featured_posts ): ?>
    <ul>
    <?php foreach( $featured_posts as $post ):

        // Setup this post for WP functions (variable must be named $post).
        setup_postdata($post); ?>
        <li>
            <a href="<?php the_permalink(); ?>"><?php the_title(); ?></a>
            <span>A custom field from this post: <?php the_field( 'field_name' ); ?></span>
        </li>
    <?php endforeach; ?>
    </ul>
    <?php
    // Reset the global post object so that the rest of the page works correctly.
    wp_reset_postdata(); ?>
<?php endif; ?>

Display list of posts (without setup_postdata)

This example demonstrates how to loop over a Post Object value and display a list of clickable links. Here, the global post variable is never changed, so all “post” related functions need a second parameter to specify which object. The field in this example uses Post Object as the Return Format, and is a multiple value.

<?php
$featured_posts = get_field('featured_posts');
if( $featured_posts ): ?>
    <ul>
    <?php foreach( $featured_posts as $featured_post ):
        $permalink = get_permalink( $featured_post->ID );
        $title = get_the_title( $featured_post->ID );
        $custom_field = get_field( 'field_name', $featured_post->ID );
        ?>
        <li>
            <a href="<?php echo esc_url( $permalink ); ?>"><?php echo esc_html( $title ); ?></a>
            <span>A custom field from this post: <?php echo esc_html( $custom_field ); ?></span>
        </li>
    <?php endforeach; ?>
    </ul>
<?php endif; ?>

Notes

Customization

The Relationship field contains filters to customize the posts displayed, and the text displayed for each post.

Reverse query

It is possible to perform a reverse query on a post (post A) to find all the posts (post B, post C) which have selected it (post A). To learn more about a reverse query, please read this in-depth tutorial.
